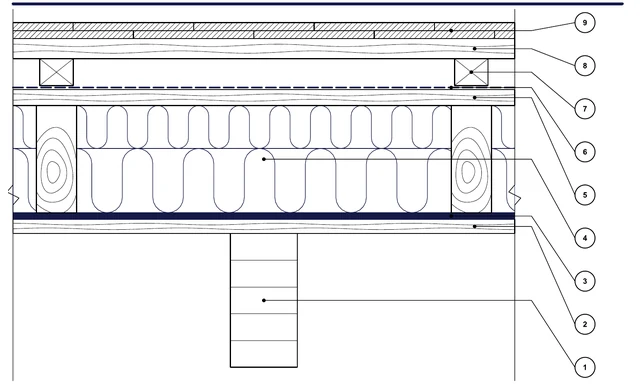

ISO-ACO-01
Roof with exposed rafters
The membranes run over the rafters — the timber remains exposed in the room
Home · Documentation · For designers
For designers
Isoflect CAD details, BIM objects and technical data sheets, ready to insert into your project.
The drawing sheet for each detail opens directly, without registration.
DXF + BIM
The DXF drawing (AutoCAD, ArchiCAD, BricsCAD) and the build-up in IFC format (Revit, ArchiCAD, Allplan), after a short form, once per visit.
Use
The drawings and models are the property of Isoflect Insulation and may be used only in projects in which Isoflect products are installed.
Roofs · 5

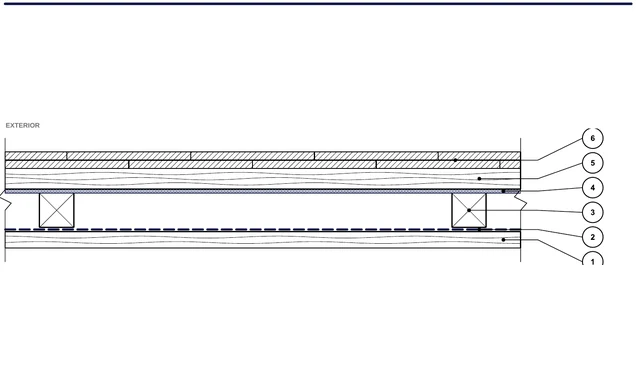

ISO-ACO-02
Roof — beneath the roof covering
Reflectiva Bronze/Silver between the counter-batten and the batten — installed from the bottom upwards, with a minimum of 50 cm left clear at the eaves and at the ridge

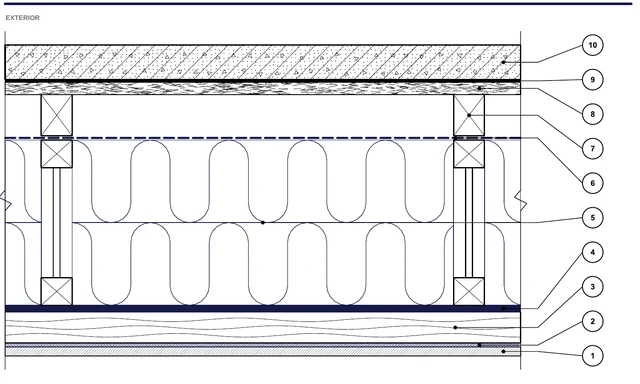

ISO-ACO-03
Flat roof on a timber structure
Multistrat and Gold on either side of the service-cavity batten, EPDM on the outside

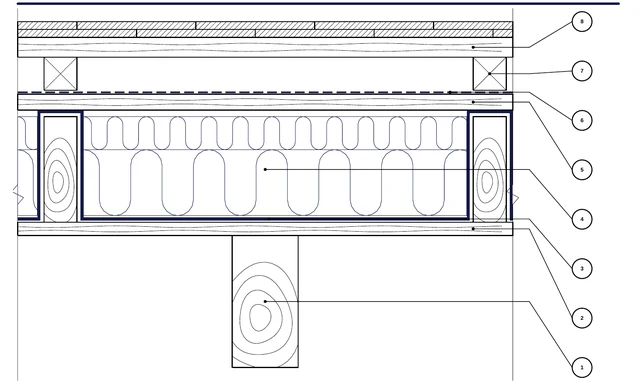

ISO-ACO-04
Habitable attic with exposed rafters — Gold in cavities
Variant A · the rafters above the timber boarding are already installed · Reflectiva Gold in cavities or Reflectiva Multistrat in two layers · Isoflect Wolle 15 cm

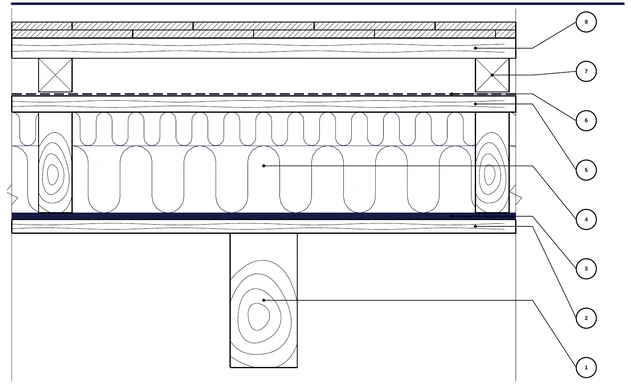

ISO-ACO-05
Habitable attic with exposed rafters — Gold laid over the timber boarding
Variant B · the rafters above the timber boarding are not yet installed · Reflectiva Gold laid over the timber boarding, beneath the rafters · Isoflect Wolle 15 cm
Habitable attics – System 10 · 3

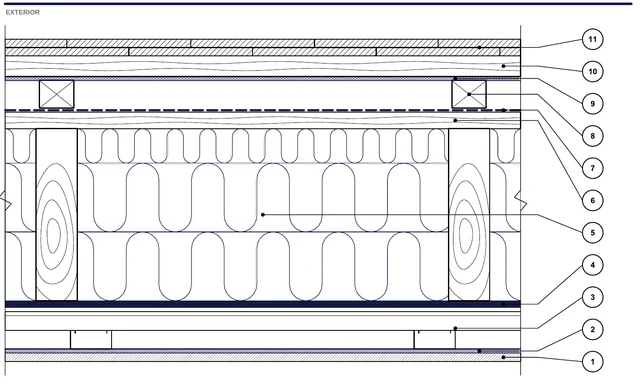

ISO-MAN-A25
Habitable attic on rafters — System 10 Basic
Variant A · Multistrat, Gold and Wolle on the inside · optional: Roof Pro or Roof Optim on the roof boarding, Bronze or Silver between the counter-batten and the batten · rafters 25 cm

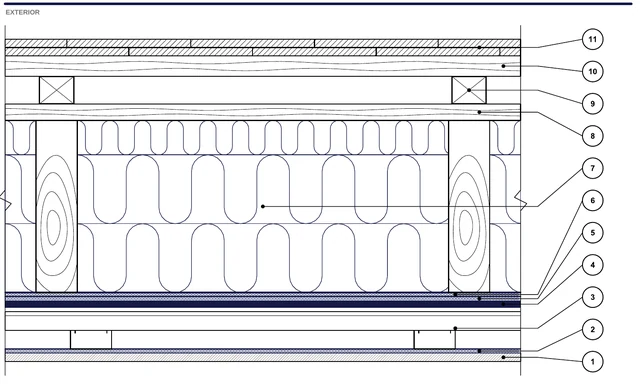

ISO-MAN-B25
Habitable attic on rafters — System 10 Medium
Variant B · Gold + 2 × Multistrat beneath the rafters, Multistrat at the plasterboard · rafters 25 cm

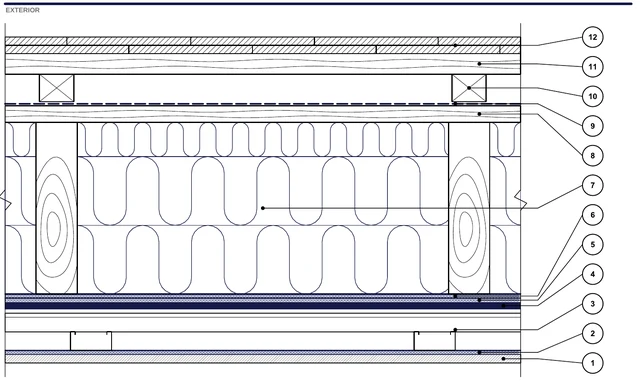

ISO-MAN-C25
Habitable attic on rafters — System 10 Premium
Variant C · as Medium, plus Roof Pro or Roof Optim over the roof boarding · rafters 25 cm
Walls · 6

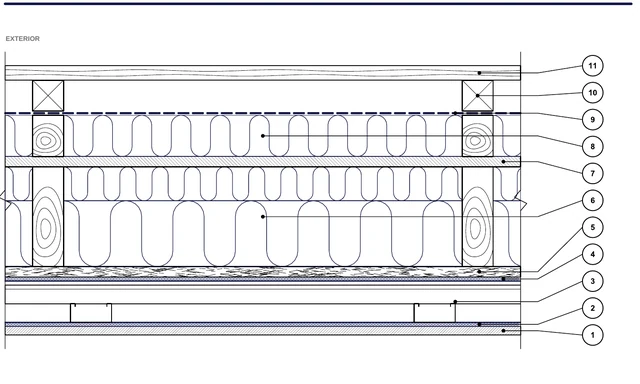

ISO-PER-01
External wall — ventilated façade
System 10 installed vertically — ventilated façade with timber cladding · horizontal section

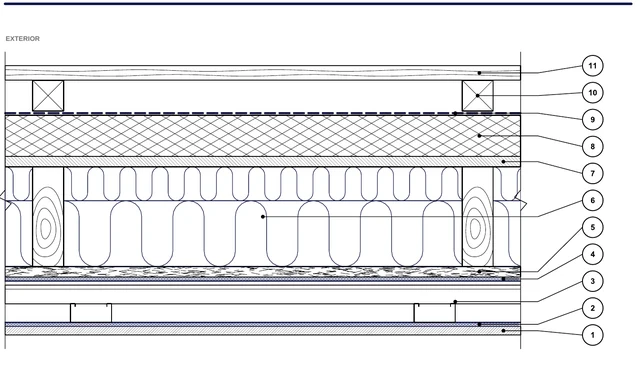

ISO-PER-02
External wall — ventilated façade, plinth zone
XPS band at the base, min. 30–50 cm above ground level · horizontal section through the plinth

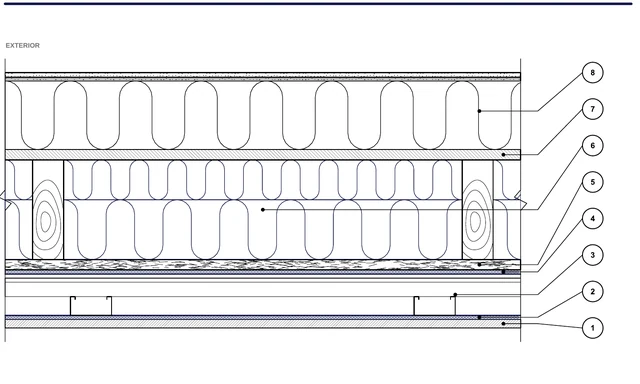

ISO-PER-03
External wall — render
The external thermal insulation system remains unchanged; Isoflect is installed on the inner face · horizontal section

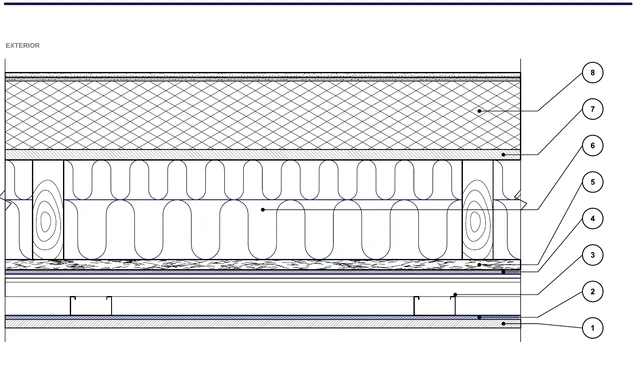

ISO-PER-04
External wall — render, plinth zone
XPS band at the base, min. 30–50 cm above ground level · horizontal section through the plinth

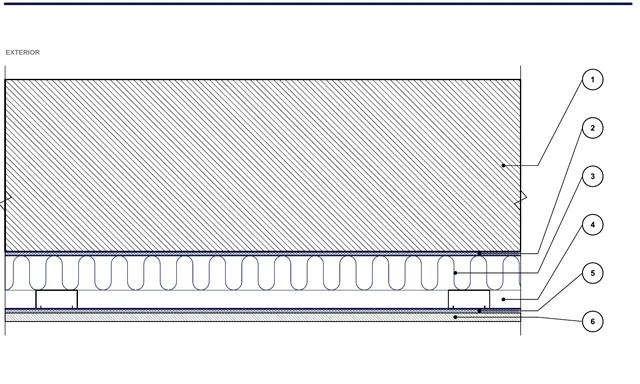

ISO-PER-05
RenoFit wall — internal insulation
On an existing brick wall — Multistrat, Wolle P800, Multistrat · horizontal section

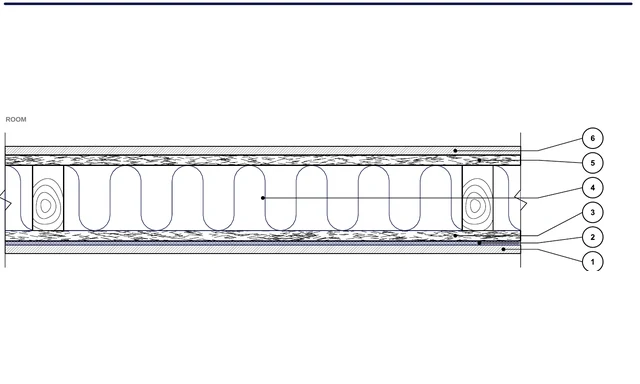

ISO-PER-06
Internal wall on a timber structure
Reflectiva Multistrat on one face, Wolle between the studs · horizontal section
Unheated attics · 5

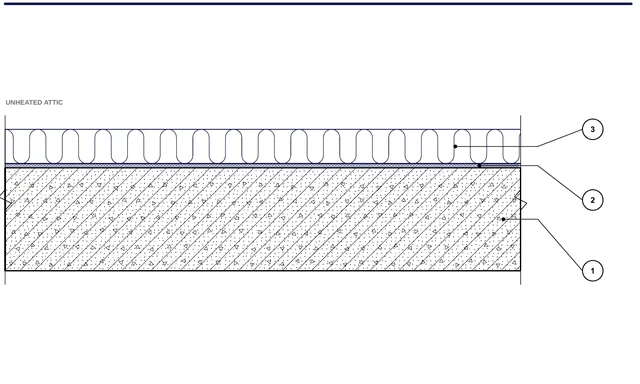

ISO-POD-01
Attic floor on a concrete slab
Multistrat on the concrete slab, Isoflect Wolle P800 on top

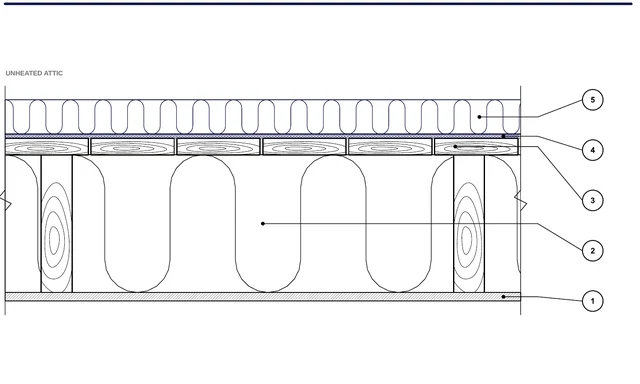

ISO-POD-02
Attic floor on timber joists
Wool insulation between the joists, boarding, Multistrat with the aluminium facing upwards and Wolle on top

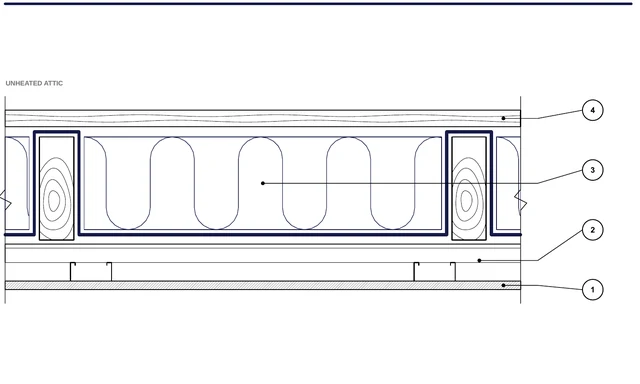

ISO-POD-03
Attic floor with Gold cavities
Gold follows the contour of the joists, Wolle fills the cavities, the boarding becomes the attic floor

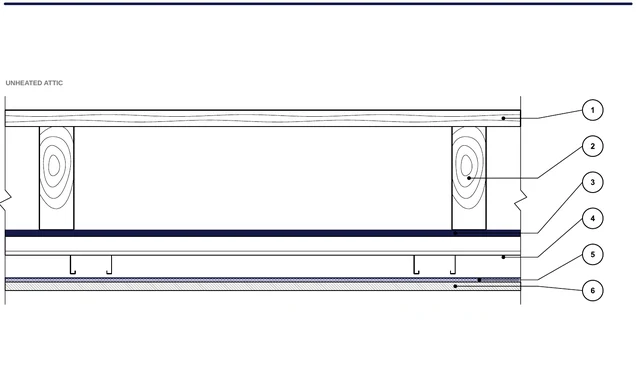

ISO-POD-04
Reflective package beneath the attic floor
Plasterboard, Multistrat, double CD substructure and Gold beneath the joists, with no insulation between the joists

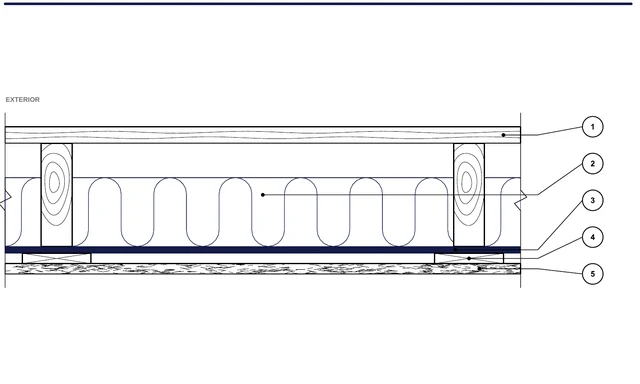

ISO-POD-05
Attic roof structure — internal insulation
Wolle between the rafters, Reflectiva Gold, timber board spacer and OSB towards the interior
Floor slabs and floors · 7

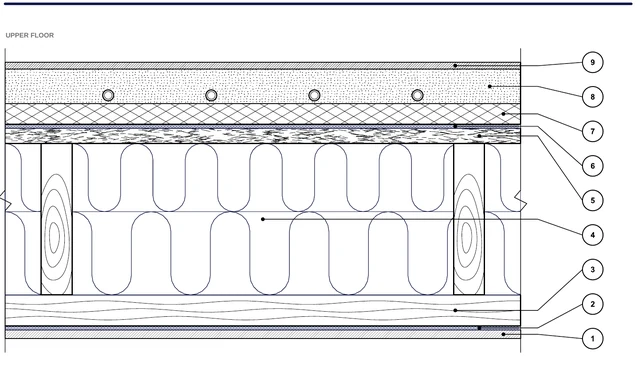

ISO-PLA-01
Timber intermediate floor
Floor Pro beneath the screed, Wolle between the joists, underfloor heating

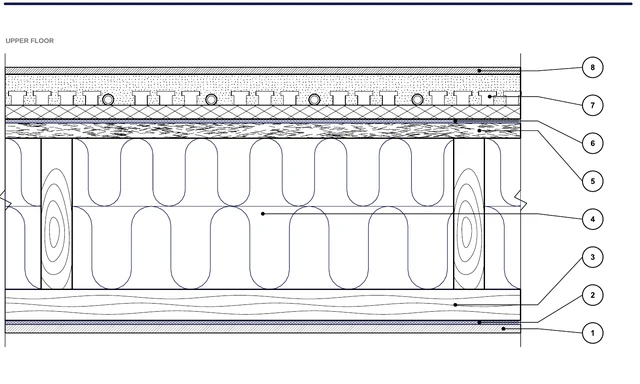

ISO-PLA-02
Timber intermediate floor — system with studded panels
Studded EPS panel instead of self-levelling screed — Floor Pro underneath, Wolle between the joists

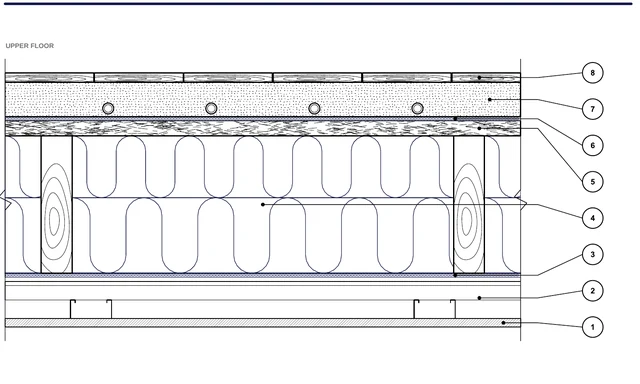

ISO-PLA-03
Timber intermediate floor — Wolle variant
Isoflect Wolle instead of wood fibre, Floor Pro beneath the floor finish

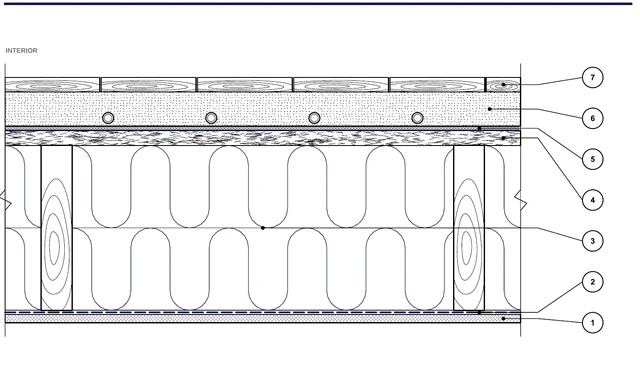

ISO-PLA-04
Floor over a crawl space
Suspended foundation — Floor Pro on top, Roof Pro on the cold side

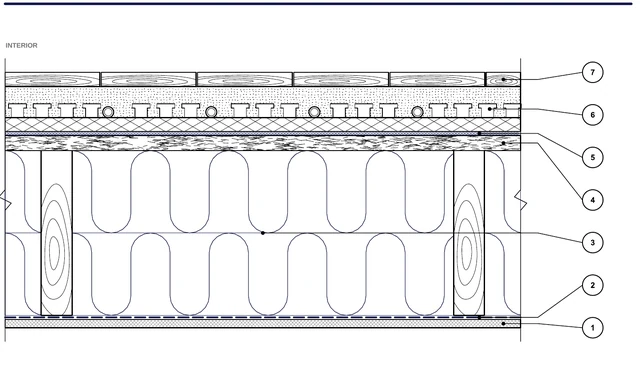

ISO-PLA-05
Floor over a crawl space — system with studded panels
Suspended foundation — studded panel instead of screed

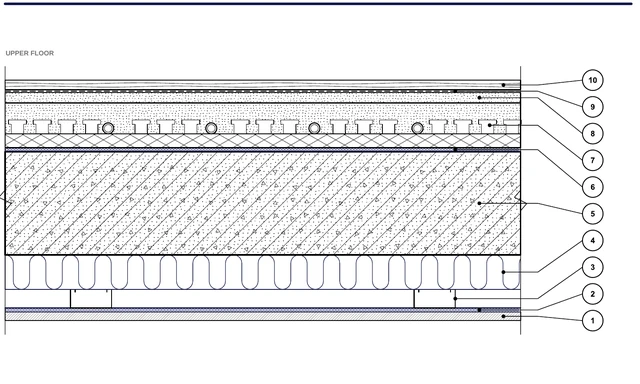

ISO-PLA-06
Concrete floor slab between storeys
Multistrat + Wolle ceiling beneath the slab, Floor Pro and underfloor heating on top

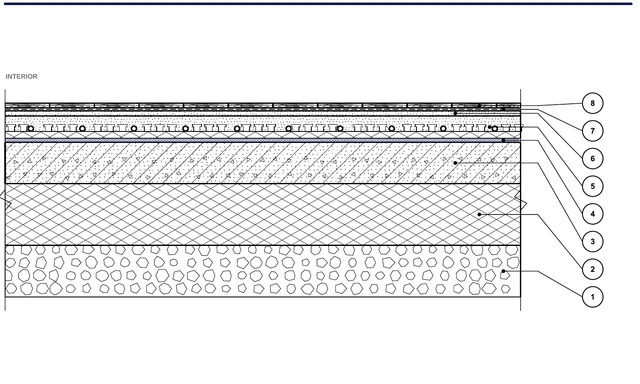

ISO-PLA-07
Ground floor on a concrete slab
Floor Pro on the concrete slab, underfloor heating on studded panels, parquet
Flat roofs · 2

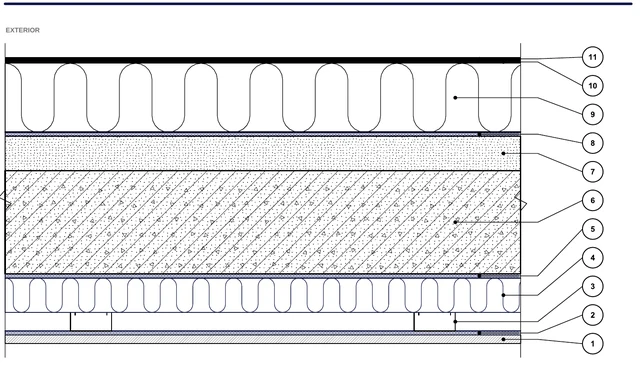

ISO-TER-01
Non-trafficable flat roof on a concrete slab
Isoflect ceiling beneath the slab, Multistrat and stone wool on top, bituminous waterproofing

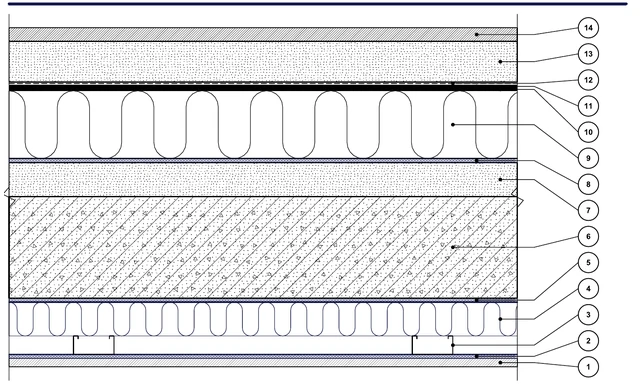

ISO-TER-02
Trafficable flat roof on a concrete slab
Isoflect ceiling beneath the slab, Multistrat and stone wool on top, waterproofing and paving slabs
Product BIM library
IFC objects for Reflectiva Gold, Silver, Bronze, Multistrat, Roof Pro, Roof Optim and Wolle P800, P1500, P2100: material layer, thickness and the data declared in the technical data sheet.
Technical data sheets
- Reflectiva GoldPDF
- Reflectiva SilverPDF
- Reflectiva BronzePDF
- Reflectiva MultistratPDF
- Roof ProPDF
- Roof OptimPDF
- Wolle P800PDF
- Wolle P1500PDF
- Wolle P2100PDF
- Power TapePDF
The current revision is stated on each data sheet.
